VACUUM & INERT-GAS REFILL
Stainless Steel Vacuum Glove Box
C-type

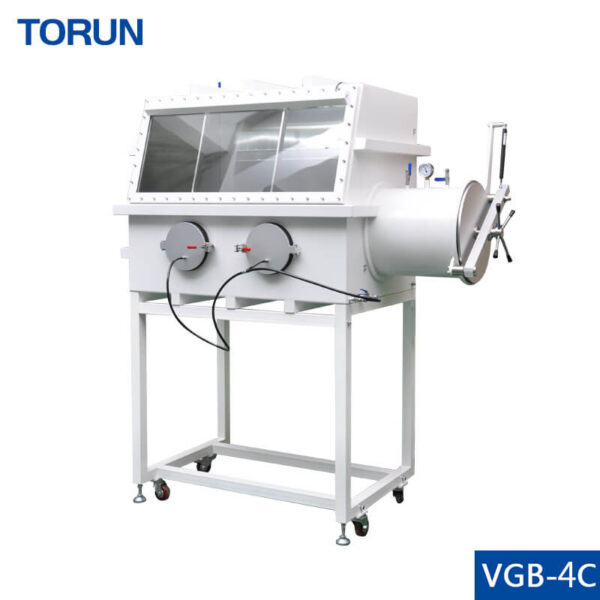

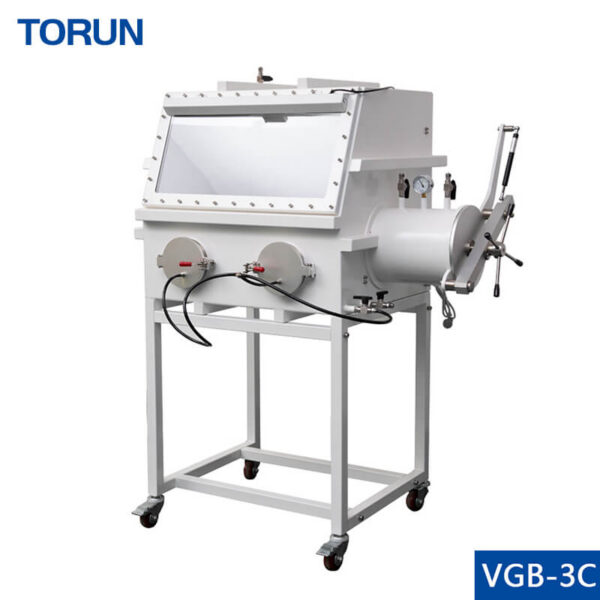

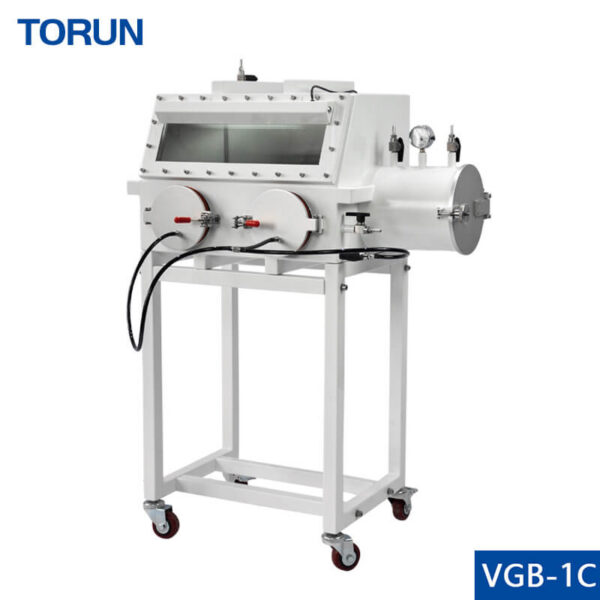

VGB-1C · VGB-3C · VGB-4C
Product Introduction
The C-type Stainless Steel Vacuum Glove Box provides a controlled working environment by evacuating the chamber and refilling it with inert gas to reduce moisture and oxygen levels. It is designed for experimental and production applications in university laboratories, research institutes and technology enterprises.
The system includes an evacuable main chamber, an evacuable antechamber, two glove ports, a side door, LED lighting, gas inlet and outlet ports, a vacuum pressure gauge, an internal power socket, and two spare KF25 ports at the rear.
Operating Principle
The main chamber is evacuated and then filled with high-purity inert gas. Repeated evacuation and gas-refill cycles reduce moisture and oxygen concentrations. The supplied specification states that levels can fall below 200 ppm; actual results depend on the number of cycles and the purity of the inert gas.
The antechamber allows items to be transferred into and out of the main chamber while helping preserve its low-moisture, low-oxygen atmosphere.
Application Areas
- Organometallic chemistry and organic synthesis
- 3D printing and advanced-material powder packaging
- Special anaerobic and hydrophobic chemical processing
- Biomedical applications and electronic component processing
- Solar cell assembly
- Lithium battery materials research and battery assembly experiments
- Catalyst treatment and pharmaceutical synthesis
- Nuclear and membrane industry applications
Key Features
- SUS304 stainless steel: Corrosion-resistant construction. Compatibility should be assessed for the experimental materials used.
- Reinforced chamber: External reinforcing ribs support the structure, with a stated vacuum value of −0.1 MPa.
- Clear working view: Transparent tempered-glass front window with lighting above the window.
- Internal power supply: Sockets for experimental instruments such as spin coaters and balances.
- Gas connections: Stainless steel ball valves with quick-connect or hose-barb fittings for the inlet and outlet.
Technical Specifications
| Parameter | VGB-1C | VGB-3C | VGB-4C |
|---|---|---|---|
| Size (W × D × H)* | 600 × 450 × 420 | 780 × 650 × 700 | 1120 × 740 × 900 |
| Antechamber (diameter × length)* | φ210 × 260 | φ240 × 260 | φ385 × 400 |
| Manual side door (H × D)* | 300 × 260 | 350 × 300 | 450 × 350 |
*Dimensions are reproduced as supplied; their unit was not stated. Model-specific antechamber and side-door values are arranged in the supplied model order and should be confirmed with Tongrun.
| Parameter | Specification |
|---|---|
| Vacuum value | Main chamber and antechamber: −0.1 MPa, as stated in the source. |
| Main chamber | SUS304 stainless steel, 3 mm thick. Interior: brushed stainless steel. Exterior: white painted finish. |
| Front window | 10 mm tempered glass with a wide viewing angle. |
| Gas connections | Stainless steel ball valves with quick-connect or hose-barb fittings; one inlet and one outlet. |
| Lighting | White, non-UV lighting above each glass window. LED lighting is specified in the product introduction. |
| Internal power | Multi-outlet power sockets for instruments inside the chamber. |
| Gloves | One pair of latex gloves; length: 600 mm. |
| Spare ports | Two KF25 ports at the rear for future upgrades. |
Optional Accessories
The following accessories are listed as options. Confirm availability, compatibility and the required configuration when requesting a quotation.
| Accessory | Details |
|---|---|
| Vacuum pump | 2L / 4L designation, as supplied; capacity units and pump specifications require confirmation. |
| Movable stand | Mobile support stand. Confirm the intended benchtop or stand-mounted arrangement. |
| Automatic pressure controller | Fully automatic pressure control. |
| Moisture and oxygen sensors | Domestic or imported options. |
| Moisture and oxygen controller | Fully automatic moisture and oxygen content control. |
| Foot pressure controller | Foot-operated pressure control. |
| UV sterilisation lamp | Optional UV lamp; standard lighting is non-UV. |
| Oven and refrigerator | Optional equipment; configuration to be confirmed. |
| Dust removal and cleaning system | Optional dust removal and cleaning. |
| Gas purification system | Optional system with specified H₂O and O₂ levels of ≤ 0.1 ppm. |
Manufacturer note: Parameters are for reference only. For the latest specifications, please contact Tongrun.
