CONTROLLED ATMOSPHERE · LABORATORY EQUIPMENT

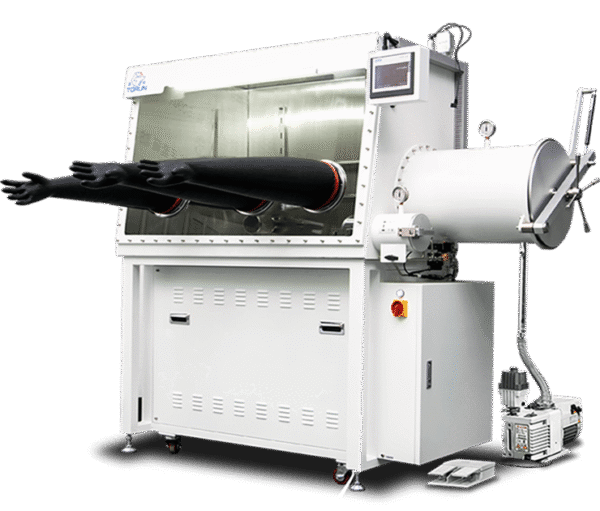

3GBS Glove Box
with Gas Purification System
A sealed working environment designed for applications requiring low moisture and low oxygen levels, with automatic gas purification and regeneration.
SUS304 stainless steel
Automatic regeneration
3GBS LABORATORY GLOVE BOX
Product Introduction
A controlled atmosphere.
More possibilities for your research.
Designed for laboratory applications involving moisture-sensitive and oxygen-sensitive materials, the 3GBS combines a sealed working chamber with recirculating gas purification.
≤ 0.1 ppm
Specified H₂O & O₂ levels
Sealed
Controlled working environment
Regenerable
Gas purification column
01 / WORKING ENVIRONMENT
Protect sensitive processes
The sealed gas purification system removes H₂O and O₂ from the chamber to maintain an inert atmosphere. The specified moisture and oxygen concentrations are ≤ 0.1 ppm.
02 / OPERATING PRINCIPLE
Purify. Recirculate. Regenerate.
Recirculating gas purification and a regenerable purification column maintain low moisture and oxygen levels.
Structure & Operating Principle

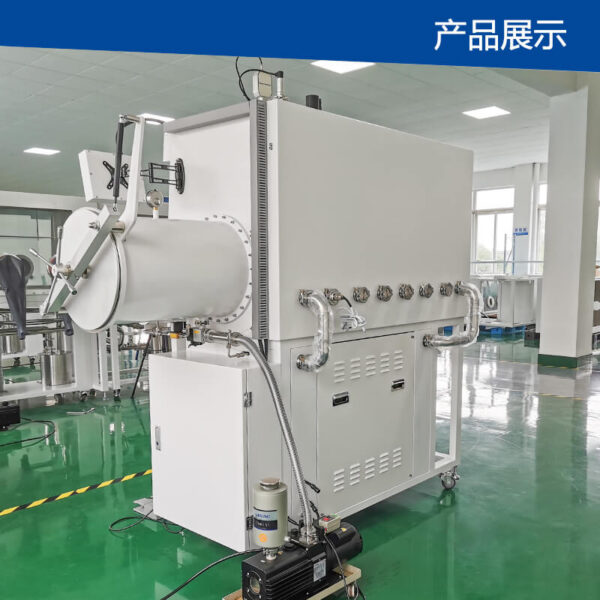

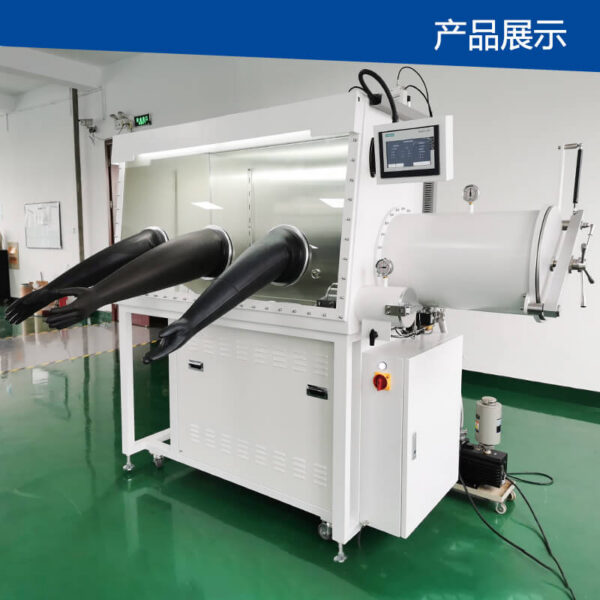

The 3GBS consists of a sealed main chamber, large and small evacuable antechambers, a rotary vane vacuum pump, and a display with a PLC controller.
The gas purification system combines a single automatically regenerable purification column with a circulation blower to purify and maintain the working environment. The system is designed to establish an inert atmosphere with H₂O and O₂ levels of ≤ 0.1 ppm.
Application Areas
Designed to provide a low-moisture, low-oxygen environment for:
- Organometallic chemistry and organic synthesis
- 3D printing with advanced material powders
- Special anaerobic and hydrophobic chemical processing
- Biomedical applications and electronic component processing
- Solar cell assembly
- Lithium battery materials research and battery assembly experiments
- Catalyst treatment and pharmaceutical synthesis
- Nuclear and membrane industry applications
Key Features
- SUS304 construction: Stainless steel chamber with an optional tempered-glass or polycarbonate front window.
- Atmosphere control: Specified H₂O and O₂ levels of ≤ 0.1 ppm.
- Low leakage: Specified leakage rate of ≤ 0.001 vol%/h.
- Modular solenoid valves: Designed to reduce leakage and simplify replacement.

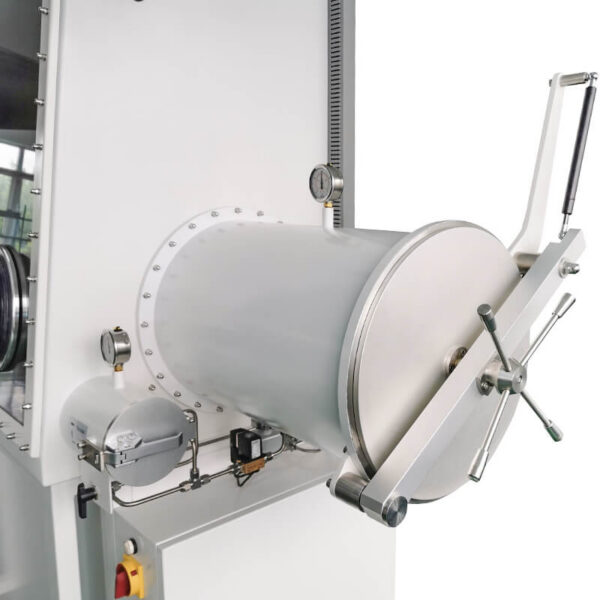

- Large antechamber: Sliding tray and a lightweight, easy-to-open transfer door.
- Gas purification and filtration: Inert gas purification system with HEPA filtration.

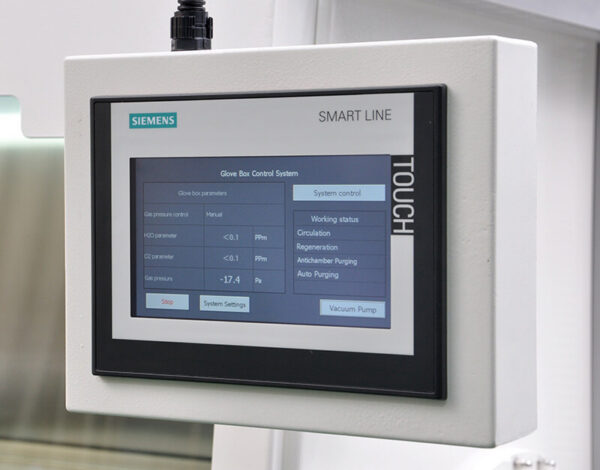

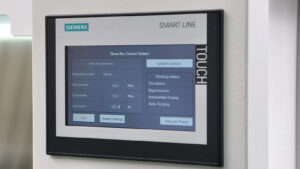

- SIEMENS controls: Microcontroller and touchscreen interface for access to system functions.
- Sealed gas circulation: Described as oil-free and vacuum-free, with stainless steel gas-flow pipes and fittings.
- Data logging: Automatic recording of system data.
- Foot-pedal pressure control: An alternative to manual pressure adjustment.
- Automatic pressure control: Working pressure adjustable within the stated +12 mbar range.
Technical Specifications
Main Chamber
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 2,730 × 1,000 × 900 mm |
| Front window | 8 mm tempered glass or 10 mm polycarbonate (optional). |
| Glove ports | Aluminium alloy or polyoxymethylene (POM, also known as polyformaldehyde), optional. Diameter: 220 mm; O-ring sealed. |
| Gloves | Imported butyl rubber. |
| HEPA filters | Inlet and outlet filters. Particle size stated in the supplied specification: < 0.3 μm. |
| Lighting | LED lighting positioned above the front window. |
| Leakage acceptance criterion | Final acceptance testing: leakage rate < 0.001 vol%/h. |
Sensors
| Parameter | Specification |
|---|---|
| Oxygen analyser | USA AII. Accuracy: ±0.1 ppm. Electrochemical sensor; optional zirconia probe. |
| Oxygen sensor characteristics | Accurate zero point, low drift, reduced influence of organic solvents on detection results, and lower replacement costs by replacing the electrochemical cell only. Alternative probe types, including zirconia, can be selected according to customer requirements. |
| Moisture analyser | Vaisala, Finland. Accuracy: ±0.1 ppm. Range: 0–1,000 ppm; low drift. |
Gas Purification & Utilities
| Parameter | Specification |
|---|---|
| Purification system | Automatic removal of H₂O and O₂. Single purification column with automatic regeneration. Optional high-efficiency dual-column configuration. Sealed gas circulation piping. |
| Power supply | AC 230 V, 50–60 Hz, 10 A. Optional: AC 115 V, 50–60 Hz, 20 A. |
| Working gas | N₂, Ar or He; purity ≥ 99.999%. |
| Regeneration gas | H₂ content: 5–10%; balance: working gas. The supplied specification states a purity requirement of ≥ 99.999%. |
| Vacuum pump | Rotary vane pump with oil-mist filter and pneumatic control. Flow rate: 8 m³/h (7 cfm, as stated in the source). Ultimate pressure: < 2 × 10−3 mbar. Optional dry pump. |
| Circulation unit | Oil-free, high-speed blower. Airflow: 0–90 m³/h. |
| Valve | Electromagnetic high-vacuum valve. |
| Leakage acceptance criterion | Final acceptance testing: leakage rate < 0.001 vol%/h. |
Optional Equipment
Available configurations and accessories should be confirmed when requesting a quotation.
Organic Solvent Adsorption System
| Parameter | Specification |
|---|---|
| Construction | SUS304 stainless steel; 3 mm wall thickness. |
| Internal dimensions | 220 mm diameter × 450 mm height. |
| Adsorbent | High-quality activated carbon. |
Integrated Refrigerator
| Parameter | Specification |
|---|---|
| Installation & control | Independent control system; integrated into the side of the main chamber. |
| Temperature | −35 °C. |
| Capacity | 18 L or 32 L (optional). |
| Construction | 304 stainless steel chamber with five movable shelves. |
| Refrigerant | R404, as stated in the supplied specification. |
| Supply | Imported in original packaging, according to the supplied specification. |
Heated Antechamber
| Parameter | Specification |
|---|---|
| Configuration | Heating system fitted to the large antechamber. |
| Temperature | 200 °C. |
| Temperature control | ±1 °C. |
Manufacturer information: For the latest detailed specifications, accessories and customisation options, please contact Tongrun.
Discuss Your Required Configuration
Contact SPARX Tech Innovation to confirm specifications, optional equipment and a quotation for your application.
