2 hand Glove box

2 hand Glove box

Original price was: ฿1,200,000.00.Current price is: ฿999,999.00.

Products Introduction

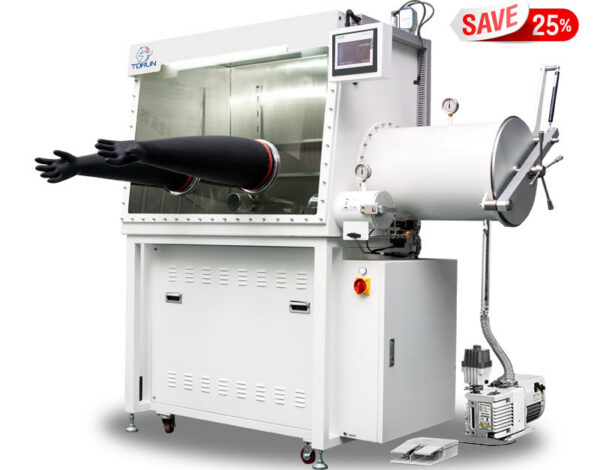

● Laboratory Glove Box 2GBS is a high-performance and quality glove box with sealed purification system; which can remove the H2O and O2 inside isolator, to create an inert gas H20&02<0.1PPM atmosphere. Providing a low-moisture, and low-oxygen environment for moisture-sensitive and oxygen- sensitive materials, to meet with your special laboratory requirements. This economic glove box with purification is specially designed for customers’ researching and manufacturing.

● The working principle of 2GBS glove box System is different from inert gas glove box & stainless steel glove boxes, with recycled regeneration system to form no-moisture and no-oxygen atmosphere. Normally, plastic glove boxes and Vacuum glove boxes are only by purging and vacuum to lower H2O and O2 value.

Category: Tags: ,
Structure composition and principle

•2GBS is composed of a sealed main chamber, a set of antechamber(including big and small antechamber) that can be evacuated, a rotary vane vacuum pump and a display with PLC controller.

The gas purification system is composed of a single automatic and renewable purification column and a blower to purify and maintain the working environment. It form a inert atmosphere of H2O&O2 ≤ 0.1PPM to satisfy your

laboratory requirements.

Application area

•Mainly creating a non-moisture and non-oxygen environment for organic metal chemistry, organic synthesis, 3D printing of new material powders, special anaerobic and hydrophobic

chemical treatment, biomedical,electronic component processing, solar cell assembly, lithium battery materials and battery assembly experements, catalyst treatment, pharmaceutical

synthesis, nuclear industry, membrane industry, etc;

Characteristics

• SUS304 stainless steel box design, tempered glass or polycarbonate front window (opional);

• Indicator: H2O&O2 ≤ 0.1PPM

• Leakage rate ≤ 0.001 vol%/h;

• The solenoid valve adopts modular design, which reduces leakage rate and is easy to replace

• A large antachamber with a sliding tray, featuring a unique design for the transition door that is lightweight and easy to open;

• Inert gas purification system; HEPA high-efficiency filter;

• SIEMENS microcontroller; SIEMENS operation touch screen, easy to access various functions;

• Sealed gas circulation, oil-free and vacuum free; All stainless steel gas flow pipes and accessories;

•Data Memo: Automatic Recording System Data;

• Replacing manual pressure control with foot pedals;

• Automatic pressure control, the working pressure can be set within the range of+12mbar;

Specifications
Main Chamber
Size 1220mm(L)*760mm(W)*900mm(H)
Front window Panel: tempered glass of 8mm thickniss or polycarbonate material of

10 mm thickniss (optional)
Glove port  Aluminum alloy material or polyformaldehyde material (optional):

220mm diameter with O-ring sealed
Glove Inport butyl rubber
HEPA filters Inlet and outlet filter can eliminate particle size ＜0.3 μm
Lighting LED lighting is located at the top of the front window
Leakage range Conduct final acceptance testing according to the standard

of leakage rate < 0.001vol%/h
Sensor
Oxygen analyzer

(optional zirconia)

 USA AII
Accuracy ± 0.1PPM
Electrochemical cells have the advantages of accurate zero point, small drift,

less influence of organic

solvents on detection results, and low replacement costs

(only replacing electrochemical cells). Other



types of probes (zirconia) can also be replaced according to customer needs.
Moisture analyzer Vaisala, Finland
Accuracy ± 0.1PPM
Range 0-1000ppm, low drift
Gas purification system
Describe Automatically remove H2O and O2; Single purification column system;

Automatic regeneration (optional high-efficiency dual purification column);

Sealed gas circulation pipeline;
Voltage AC 230V/50-60 Hz, 10A or AC 115V/50-60Hz, 20A (optional)
Gas requirements Working gas: N2, Ar, He (purity ≥ 99.999%);

Regeneration gas: H2 accounts for 5% -10%, the rest is working gas (Purity ≥ 99.999%)
Vacuum pump Specification: rotary vane vacuum pump, equipped with oil mist filter,

with pneumatic control;

Flow rate: 8m3/h (7cfm), vacuum degree<2×10-3mbar (optional dry pump)
Loop unit Oil free high-speed fan air volume: 0-90m3/h
Vavle Electromagnetic high vacuum valve
Leakage range Conduct final acceptance testing according to the standard

of leakage rate<0.001vol%/h
Optional selection
Organic solvent

adsorption

system

 Material: Stainless steel SUS type 304 with a thickness of 3mm；

Internal dimensions: 220mm(diameter) x 450mm (H);

High quality activated carbon;
Refrigerator Independent control system, integrated on the side of the main chamber;

temperature -35℃, optional capacity of 18L or 32L;

Main body made of 304 stainless steel plate, with 5 movable shelves;

R404 environmental protection refrigerant, imported with original packaging;
Heating

antechamber

 The large antechamber is equipped with a heating system, with a temperature of 200 ℃

and a temperature control of ± 1 ℃
